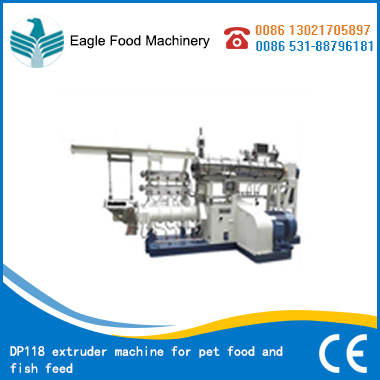

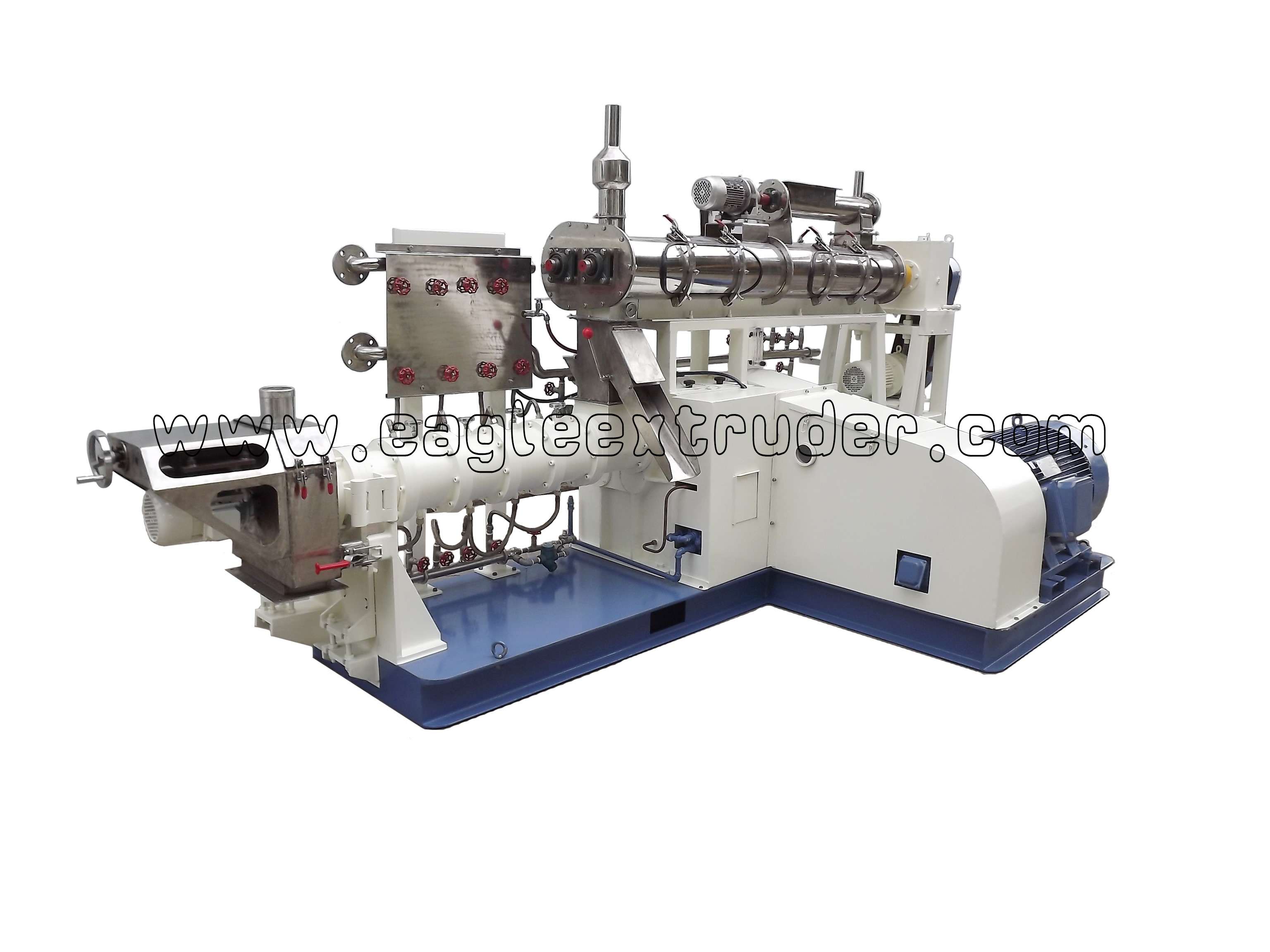

DP118 Twin screw extruder machine for pet food and fish feed
1. The machine is equipped with
PLC automatic control
2. Under the advanced touch
operation, the order can be fulfilled with your touch.
3. With the feeder of frequency
and speed control, the uniform feeding can be achieved.
4. The gearbox of the main
engine is equipped with gear oil pump cooling system, lubricating system, twin
screw extruding and pumping mechanism and dual-shaft extension differential
modulator,
5. which can cure the materials
completely and make the gelatinization degree more than 98%.
6. With a great variety of raw
materials, grease contained can be over 12% in the food formulation.
7. The screws possess the function
of self-cleaning. When restarting the machine or changing materials, you do not
need to clean bores and screws.
8. The main engine can be
adapted to different raw materials by frequency control and the discharging
chopper is controlled by frequency conversion so as to adjust the length of
materials.
9. Made of special materials by
special process, the screws and shells are tolerant to wear and pressure.
10. The feedstuff is sterilized
by high temperature and pressure in the course of processing so that we can
guarantee the foodstuff is clean and safe.
11. The bore diameter (d) of the
cylindrical discharging die is 0.8mm to 10mm.
12. We can also customize die
bores of other special shapes according to requirements of customers.
13. The machine can be applied
to process puffed feedstuff (floating or sinking), the stability of which can
last for more than 24 hours in water.
In addition, this machine can be applied to
process the bait for aquarium fish, pets` food, porket feed, puffed feed for
young animals, livestock and poultry as well as other puffed food of high
quality.
Main Technical Parameter:
|
Model |
DP-118 |
|
Capacity |
1.0~2 Tons per hour |
|
Main Motor Power |
110kw |
|
Conditioner Power |
5.5kw |
|
Cutting power |
4kw |
|
Feeder Power |
0.75kw |
|
Pellet feed size |
0.8~10mm |
|
Form rate |
≥98% |
|
Water content of the product |
≤10% |
|
Installed capability |
300kw |
|
Steam consumption |
300kg/h |
